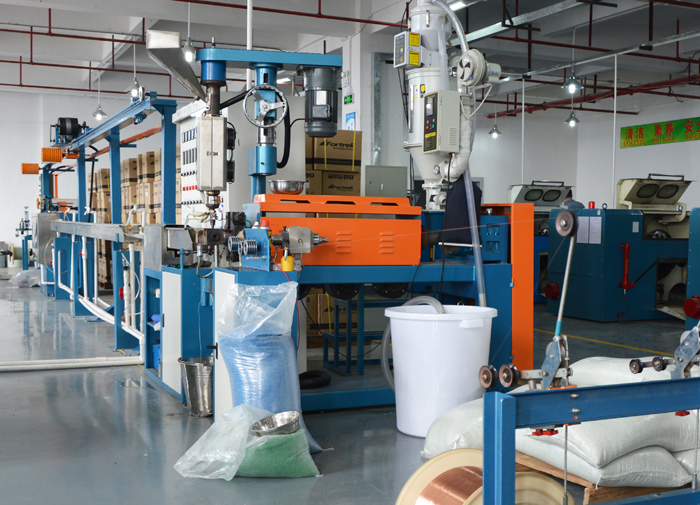

50+50 double layer co extrusion production line
purpose
Suitable for PVC, PVC, PP, PE, NBR and other plastic wire single / double, single / dual color high-speed extrusion, mainly double-layer extrusion cloth wire, power line, mine cable extrusion, nuclear power cable, automotive wiring harness for extrusion.
主要技术参数Technical parameters:
|
Material 材料 |
PVC,NBR-PVC,PP,PE |
|
wire conductor diameter 导体直径 |
ø 0.5-4.0mm |
|
Production line speed 线速 |
<=500m/min依线经而定(according to the wire diameter) |
|
flexible wire finished diameter 软线完成外径 |
ø 1.5-8mm |
|
Hard-wired finished diameter硬线完成外径 |
ø 0.5-6mm |
|
Wire coaxiality同心度 |
above-93% |
|
Extrusion output 挤出量 |
150kg/h( the machine head is open, PVC material ) |
|
Color颜色 |
天蓝色（可根据客户要求）sky blue（can adjust according to customer’s demand） |
|
Power功率 |
45KW |
|
Center height of production line机械中心高 |
1000mm |
