1,machine application:

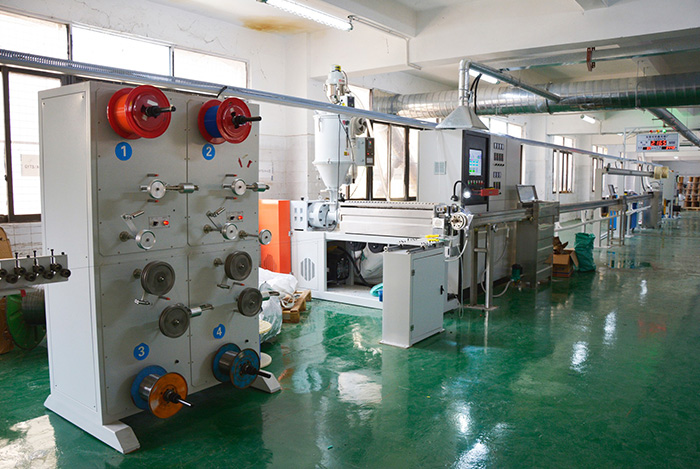

Soft optical cable extruder mainly applied in processing tight fiber into optical fiber cord.
2,ø50*26D Technical parameters:
| Tight fiber diameter | ø0.9mm |
| Optical fiber cord diameter | MAX.ø6.0mm |
| Structure speed | 300m/min |
| Production speed | 100m/min |
| Tight fiber reel size | ø400mm |
| Pay-off tension of tight fiber | 1N-3N(adjustable) |
| Stranding pitch | 80-400mm |
| Heads No of Aramid yarn | 10 heads |
| Pay-off tension of aramid yarn | 3N-10N |
| Take-up tension | 5N-20N(adjustable ) |
| Take-up reel size | ø630mm-1000mm |
3, ø65*26D Technical parameters:
| Tight fiber diameter | ø0.9mm |
| Optical fiber cord diameter | MAX.ø7.5mm |
| Structure speed | 300m/min |
| Production speed | 100m/min |
| Tight fiber reel size | ø400mm |
| Pay-off tension of tight fiber | 1N-3N(adjustable) |
| Stranding pitch | 80-400mm |
| Heads No of Aramid yarn | 10 heads |
| Pay-off tension of aramid yarn | 3N-10N |
| Take-up tension | 5N-20N(adjustable ) |
| Take-up reel size | ø630mm-1000mm |
