1,Equipment application:

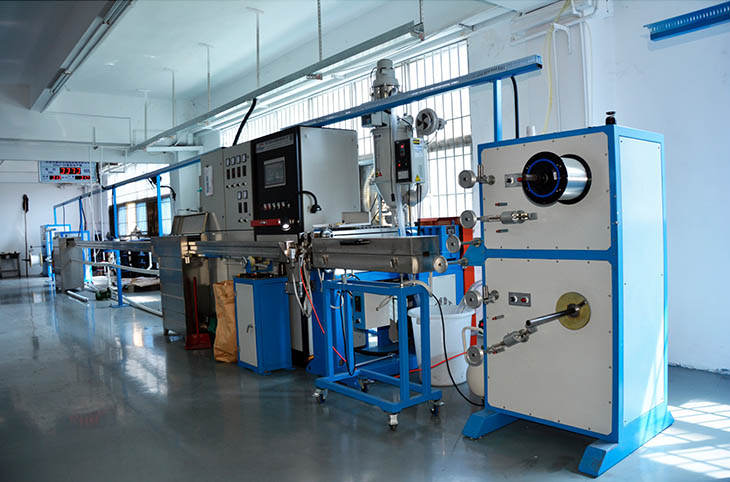

Mainly applied in processing common optic fiber into tight fiber.
2,Equipment features:
A.High configuration,the machine use IPC+PLC control system
B.main electric parts are importing,screw adopt the modern latest technology
C.Gear tooth surface abrasion resistance.Low energy consumption of the equipment,a large quantity of extrusion, high production
efficiency, high gloss surface,small temperature difference,low noise, good stability, strong continuity of working, convenient operation, long service life.
3,Technical parameters:
| Bare optic fiber diamater | ø0.254mm |
| Tight fiber diamater | ø0.9mm,ø0.6mm |
| Production line speed | MAX.300m/min |
| Optical fiber reels size | 25km or 50km reels |
| Pay-off tension | 0.4N-15N±0.05N |
| Take-up tension | 0.5N-3N(adjustable) |
| Take-up reels size | ø400mm |
| Production line length | 19m |
| Power | 26KW |
| Center height of production line | 1000mm |
