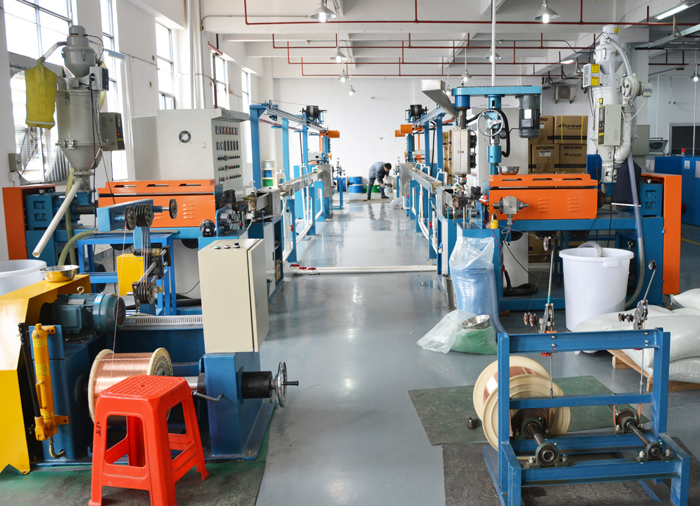

UL wire, electrical wiring and other core line insulation production line

A device, use: suitable for PVC, PE, PU and other plastic extrusion, mainly used for electronic wire, network wire, power line, data line, high-frequency line insulation wire production, can also be used for small section production line sheath; replacement screw is suitable for low smoke halogen-free, nylon and other plastic extrusion.

Two, the characteristics of the equipment: high configuration, the main electrical components imported original, the use of modern screw technology, the gear tooth surface hardened by high-frequency quenching and precision grinding, wear resistance. The equipment has the advantages of low energy consumption, large extrusion quantity, high production efficiency, high surface gloss, small temperature difference, low noise, good stability, strong continuity, convenient operation and long service life

Three, equipment configuration: mainly composed of active line planes, preheating, straightening, the host (free transfer head), automatic suction machine and dryer, the electric equipment main control box, a movable tank, laser diameter measuring instrument, high speed printing machine, winding machine, wheel fixed tank, horizontal line storage rack, high frequency spark machine, biaxial take-up machine etc.. Optional PLC control, injection machine (for two-color line production), the specific configuration can be adjusted according to customer needs.





机型	放线线轴	螺杆直径	螺杆长径比	挤出量	主机功率	生产线径	冷却装置	引取功率	线速度	收线型式
25	双轴式	￠25	26：1	20kg/h	7.5HP	￠0.2～1.0mm	单层/双层U型	2HP	Max.500m/min	双轴扎装/轴装
30	双轴式	￠30	26：1	30kg/h	10HP	￠0.2～2.0mm	单层/双层U型	2HP	Max.500m/min	双轴扎装/轴装
35	双轴式	￠35	26：1	40kg/h	10HP	￠0.4～2.5mm	单层/双层U型	2HP	Max.500m/min	双轴扎装/轴装
45	双轴式	￠45	26：1	50kg/h	15HP	￠0.6～3.0mm	单层/双层U型	3HP	Max.500m/min	双轴扎装/轴装
50	双轴式	￠50	26：1	70kg/h	15HP	￠0.6～4.0mm	单层U型	3HP	Max.500m/min	双轴扎装/轴装
60	双轴式	￠60	26：1	110kg/h	20HP	￠0.8～8.0mm	单层U型	4HP	Max.500m/min	双轴扎装/轴装
65	双轴式	￠65	26：1	130kg/h	25HP	￠1.2～10mm	单层U型	5HP	Max.500m/min	双轴扎装/轴装
70	双轴式	￠70	26：1	150kg/h	30HP	￠1.5-12mm	单层U型	5HP	Max.500m/min	双轴扎装/轴装
