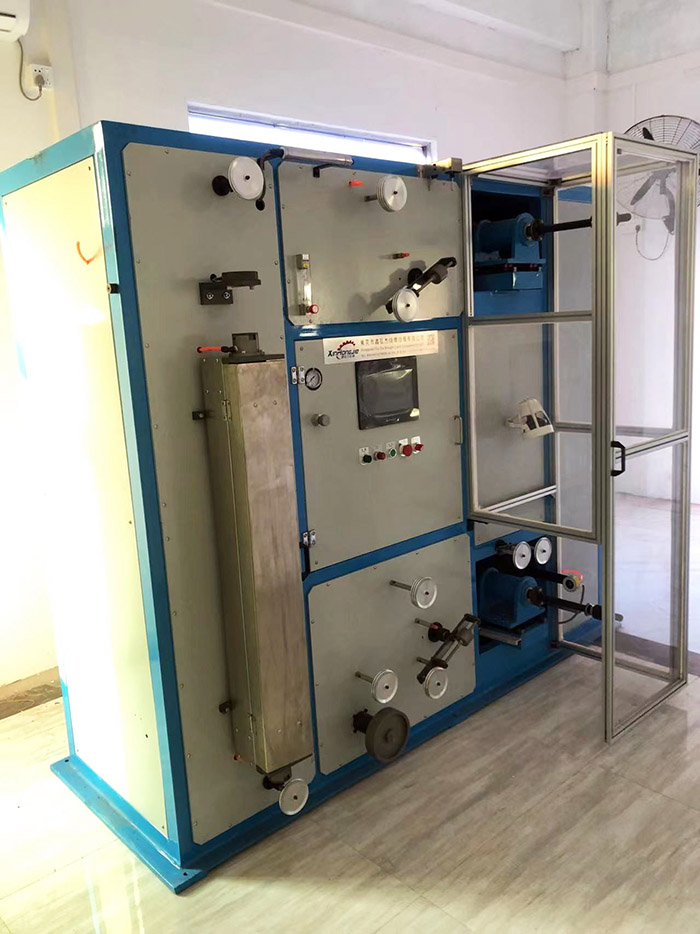

Optical fiber coloring machine



1,Equipment application :

 The optical fiber coloring and rewinding machine mainly applied for coloring the surface of optic fibers,convenient to identify

the multi-fibers within the loose tube.Also can be used to rewind fibers and coat the nylon-tighted fibers with the silicone gel .

2,features:

  a,main  function :coloring the surface of optic fibers

  b,auxiliary function:rewiding the optic  fiber

  c, the machine use IPC+PLC control system,main electric parts  are importing,

  d, high production efficiency, convenient operation.

3,Equipment application:

No of optical fiber	1 piece
Coloring speed	1000-1200m/min or 1500-1600m/min
Structure speed	L1500m/min or 1800m/min
Rewinding speed	<=1500n/min or 1800m/min
Coloring layer thickness	3-5um
Pay-off tension	0.4N-1.2N±0.05N
Traversing pitch	0.2-1.5mm
Excess loss after coloring	<=0.02db/km
Optical fiber reel size(MAX)	ø350×ø25.4×ø300mm,weight:5kg(25km/50km reel)
